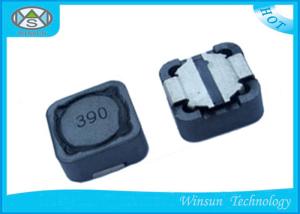

RoHS Compliant WSRH Series Winding Wire Chip / SMD Power Inductor
FEATURES:
Various high power inductors are superior to be high saturation for surface mounting .
Inductance Range: 1.2uH - 1000uH
Rated Current : 0.16A~8A(Max)
DCR : 0.05~8.25 Ω (Max)
High quality
Low MOQ
Competitive price
SMD magnetically shield power inductor
Shielded SMD power chip inductor
Magnetic shielded surface mount inductor with high-current rating
Large permissible D.C. current and low D.C. resistance
PVC Sleeve protects the winding
Excellent thermal stability
Low profile
High saturation current
Magnetic shielded
SMT type
Operating temperature range: -25°C~+110°C with rated current
Storage temperature range: -25°C~+110°C
Large permissible D.C. current and low D.C. resistance
PART NUMBERING SYSTEM:
WSRH - 63 - 100 - K - R
(1 ) (2) (3) (4) (5)
1 Series Name

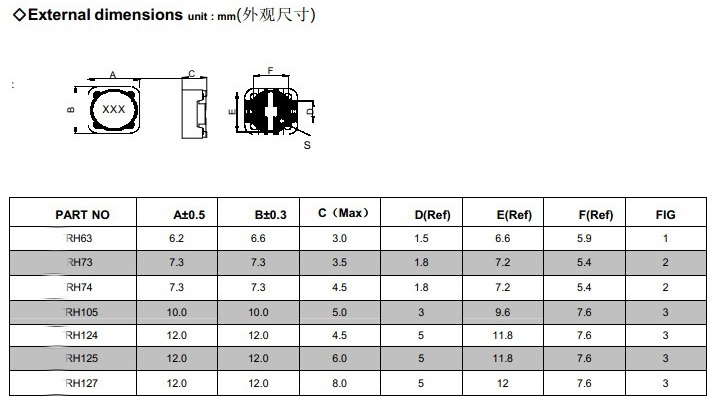

2 Dimensions
3 Inductance 1R0＝1.0uH.100＝10uH. 101＝100uH.
4 Tolerance J＝±5%, K＝±10%, L＝±15%, M＝±20%, P＝±25%, N＝±30%
5 Packing code R: Tape&Reel B: In Bulk
| Inductance Range | 1.2uH~1000uH |
| Rated Current | 0.16A - 8A |
| DCR | 0.05~8.25 Ω (Max) |
APPLICATIONS:
Video cameras.
Portable VCRs.
Audio equipments.
TV tunners.
Switching power supplies.
Other circuits of consideration aganist radiation etc.
